mesomelic dysplasia

mesomelic dysplasia

description

mesomelic dysplasias are a heterogeneous group of disorders characterized by disproportionate shortening of the middle segment of the limbs. they have been reported diagnosed in the second trimester. the most frequent varieties will be reviewed in this section but there are many other rare forms whose description is beyond the scope of this text. acromesomelic dysplasia will be discussed elsewhere. dyschondrosteosis is an autosomal dominant disorder with mild mesomelia that becomes evident in late childhood. the langer type is probably homozygous for the autosomal dominant gene of dyschondrosteosis and is characterized by marked shortening of the forearms and shanks, mild mandibular hypoplasia and normal intelligence. the ulna and radius are hypoplastic and there is marked angulation of the radial shaft. the tibia is short, thickened and often angulated. there is hypoplasia or absence of ossification of the proximal half of the fibula. the nievergelt type is also an autosomal dominant disorder with severe involvement of the upper and lower limbs. there is marked hypoplasia of the radius and ulna with radio-ulnar synostosis seen in some cases. the fibula and tibia are also very hypoplastic with the former being longer than the latter. the tibia has a rhomboidal shape, while the fibula is often angulated. clubfeet are commonly present. the robinow type has significant genetic heterogeneity and there are autosomal dominant and recessive forms. there is a characteristic facies with a triangular mouth, hypertelorism, hypoplastic external genitalia and congenital heart disease. the forearms are primarily affected with the ulna being shorter than the radius. the hands and feet are normal or small. there are multiple rib anomalies (40%), vertebral fusions and hemivertebrae (70%). the werner type is also autosomal dominant, although a more severe lethal autosomal recessive form has been reported. there is marked clinical and intra-familial variability. the forearm is mildly affected but the tibia is aplastic or severely hypoplastic, there is patellar aplasia or hypoplasia (70%), preaxial polydactyly of the hands (60%) and feet (99%). the fibula is hypoplastic (mild). triphalangeal thumbs may be present.

diagnosis

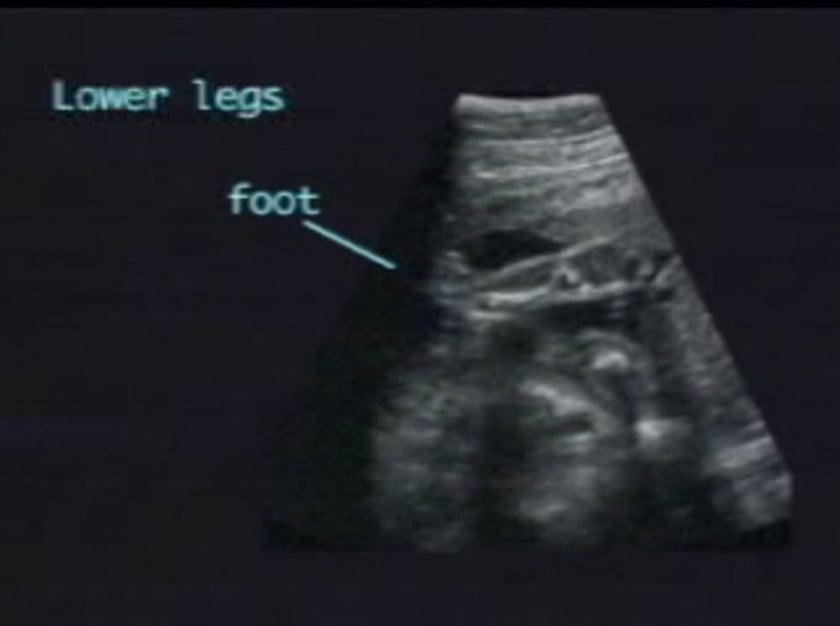

there is varying degree of shortening of the forearm and lower legs. depending on the type, the upper or lower extremities may be more severely affected. comparison between the long bones of the leg with the femur, and the forearm bones with the humerus will assist in the diagnosis. there is a spectrum of abnormality of the radius, ulna, tibia and fibula that includes mild to severe shortening, bowing, and proximal or distal hypoplasia. bone synostosis and abnormal position of the hands can also be seen.

differential diagnosis

if mesomelia is present, and in the absence of a family history of one of the particular types, the differential diagnosis includes a number of conditions whose description is beyond the scope of this text. please refer to taybi & lachman (see references) for a more detailed description of these disorders. in acromesomelic dysplasia the typical changes become more evident after birth, the tubular bones of hands and feet are very short. chondroectodermal dysplasia (ellis-van creveld syndrome) has mild to moderate mesomelia but the proximal and distal metaphyses are intact, there is congenital heart disease and polydactyly of the hands (99%) or feet (25%).

sonographic features

normal femur and humerus

varying degrees of mesomelic shortening

different combinations of tibial, fibular, ulnar and radial length

proximal or distal hypoplasia

straight or bowed bones (mesomelic segment)

abnormal hand or foot position

polydactyly

vertebral anomalies

associated syndromes

  • dyschodrosteosis
  • langer mesomelic dysplasia
  • nievergelt mesomelic dysplasia
  • reinhardt mesomelic dysplasia
  • robinow mesomelic dysplasia
  • werner mesomelic dysplasia

references

taybi h, lachman rs in: radiology of syndromes, metabolic disorders and skeletal dysplasias. 4th ed mosby publishing yearbook: p 844-849
evans mi, et al ultrasonographic prenatal diagnosis and fetal pathology of langer mesomelic dwarfism am j med genet 31:915-920
maroteaux p, spranger j study of the classification of chondrodysplasias with mesomelic predominance arch francaise pediatr 34:945-958
fryns jp, van der berghe h langer type mesomelid dwarfism as the possible homozygous expression of dyschondrosteosis hum genet 46:21-27
kaitila i, leisti jt, rimoin dl mesomelic skeletal dysplasias clin orthop res 114:94-106
hesselschwerdt hj, et al case report and literature review about werner syndrome z orthop 128:466
loverro g, et al robinow syndrome: prenatal diagnosis prenatal diagn 10:121
