dandy – walker malformation

dandy – walker malformation

previous
next
dandy walker malformation

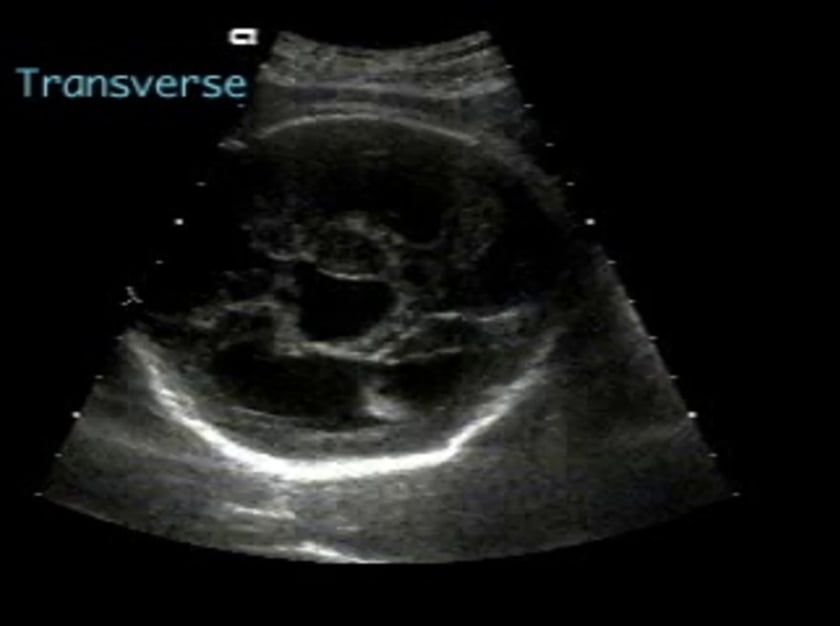

dandy walker malformation note the ventriculomegaly, the absence of a cerebellar vermis, the splaying of the cerebellar hemispheres and the dilatation of the third ventricle seen in these transverse views.
dandy-walker malformation

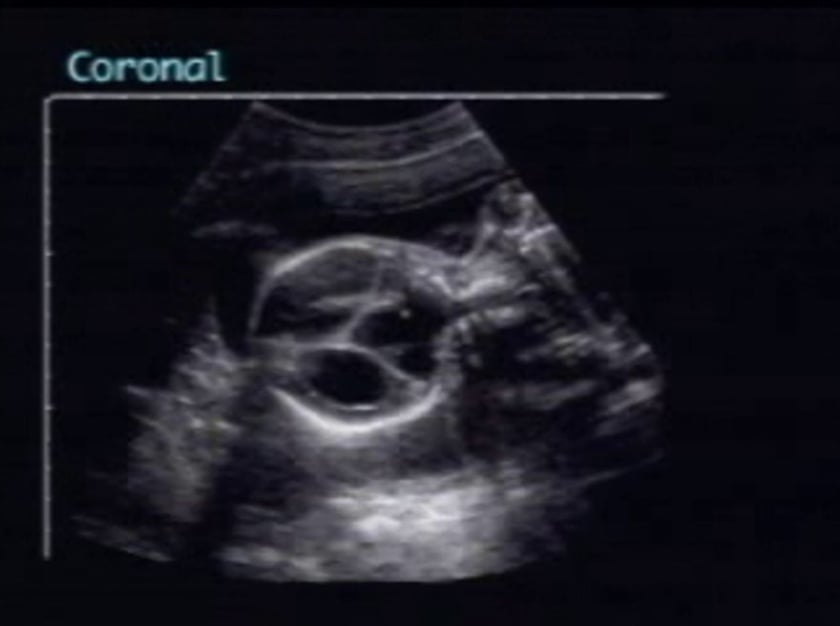

dandy-walker malformation note the complete absence of the cerebellar vermis with splaying of the cerebellar hemispheres and an enlarged cisterna magna; bilateral ventriculomegaly is clearly shown with a dangling choroid plexus in the inferior lateral ventricle.

description

normal development of the rhombencephalon (hindbrain) is essential for the emergence of the pons, cerebellum (via the metencephalon) and medulla (via the myelencephalon) and their related cavity, the fourth ventricle. arrest of this process has been proposed to result in a spectrum of abnormalities; consequences include persistence of the area membranacea superior, interruption of vermian development, and atresia of the foramina of luschke and magendie, which have all been implicated in the pathogenesis of the dandy-walker malformation. this malformation is characterised by: – hypoplasia or agenesis of the cerebellar vermis – dilatation and herniation of the fourth ventricle through this defect, seen as a large posterior fossa cyst, which displaces the adjoining falx, torcular and lateral sinuses. – hydrocephalus, which frequently accompanies the malformation. the dandy-walker variant has recently been defined; there are similar sonographic features, but there is both vermian and hemispheric hypoplasia in association with a less pronounced enlargement of the cisterna magna; in addition, hydrocephaly is not usually seen. both conditions require differentiation from isolated enlargement of the cisterna magna (megacisterna magna) and from cerebellar dysgenesis.

diagnosis

the dandy-walker malformation can be diagnosed accurately with prenatal sonography by demonstrating a prominent posterior fossa cyst communicating with the fourth ventricle through a defect in the cerebellar vermis. splaying and separation of the cerebellar hemispheres is thus always seen. the transcerebellar view provides an optimal view of the posterior fossa, allowing for assessment of the cisterna magna; measurements exceeding 10 mm are abnormal, and require further evaluation. the classic dandy-walker malformation is commonly associated with varying degrees of hydrocephalus, which may be evident prenatally but will be apparent by three months of age in approximately 75% of patients. approximately 70% of patients with dandy-walker malformation will have associated cns anomalies, principally agenesis of the corpus callosum; other conditions include subependymal neuronal heterotopia, polymicrogyria, agyria, schizencephaly, lipoma of the corpus callosum, occipital encephalocele, lumbosacral meningocele, aqueductal stenosis, and holoprosencephaly. these have also been reported in association with the dandy-walker variant. associated non-cns anomalies are present in at least 25% of infants with classic dandy-walker malformation. these anomalies include congenital heart disease, renal malformations, low-set ears, polydactyly, syndactyly, klippel-feil syndrome, cornelia de lange syndrome, cleft palate, and facial angiomas. in dandy-walker variant the list may also include duodenal atresia, intrahepatic calcification, and two-vessel cord. the sonographic examination should thus be directed towards identifying additional supratentorial and extracranial anomalies, and should include fetal echocardiography, and follow-up sonograms are useful for monitoring cyst size and ventriculomegaly. genetic syndromes associated with dandy-walker malformation include autosomal recessive disorders such as meckel-gruber, walker-warburg, and joubert syndromes; the x-linked aicardi syndrome; and other karyotypic anomalies such as duplications of 5p, 8p, and 8q, trisomies 9, 13, and 18, and triploidy. trisomy 21 and partial trisomy 11q+ have also been noted with the dandy-walker variant. fetal karyotyping is therefore recommended. rubella, cytomegalovirus, toxoplasmosis, warfarin, isotretinoin and alcohol have all been associated with the dandy-walker malformation. in both the classic malformation and the variant, prognosis is usually dependent on the associated structural and chromosomal anomalies; in the absence of either, normal postnatal development is possible.

differential diagnosis

the main presenting feature is that of an enlarged cisterna magna. other diagnoses to be considered therefore include the following conditions. arachnoid cysts, which may also present in the posterior fossa. they tend to be extra-axial, and the lesion is usually asymmetrical with no connection between the cyst and the small fourth ventricle. the prognosis is better than that in patients with dandy-walker malformation. cerebellar dysgenesis is typified by a small and misshaped cerebellum. the cisterna magna may be prominent, but the fourth ventricle is contained within the small cerebellum. megacisterna magna is not associated with hypoplasia of the cerebellar vermis, and no splaying of the hemispheres is evident. a normal fourth ventricle is usually present. there are no adverse clinical sequelae and no specific treatment is necessary.

sonographic features

complete or partial agenesis of cerebellar vermis.

midline posterior fossa cyst (fourth ventricular enlargement).

splaying of cerebellar hemispheres.

hydrocephaly is common.

associated syndromes

  • aase-smith
  • aicardi
  • atkin
  • bowen-conradi
  • buttiens
  • cerebro-oculo muscular (walker-warburg)
  • chitayat
  • chromosomal
  • coffin-siris
  • cranio-cerebello-cardiac
  • cryptophthalmos
  • cytomegalovirus infection
  • de lange
  • edwards
  • ellis-van creveld
  • fronto nasal dysplasia-polydactyly
  • frontonasal dysplasia
  • fryns
  • goldenhar
  • hydrolethalus
  • isotretinoin
  • jones
  • kallmann
  • kudo
  • maternal diabetes
  • meckel-gruber
  • moerman
  • mohr (ofd ii)
  • nasopharyngeal teratoma
  • orofaciodigital type iii
  • pallister-hall
  • postaxial polydactyly
  • renal-hepatic-pancreatic dysplasia
  • rubella-prenatal
  • rubinstein-taybi
  • ruvalcaba
  • spastic paraplegia, cerebellar hypoplasia
  • warfarin, prenatal
  • x-linked dandy-walker

references

  1. paidas mj, cohen a disorders of the central nervous system semin perinatol 18: 266-282
  2. keogan mt, deatkine ab, hertzberg bs cerebellar vermian defects: antenatal sonographic appearance and clinical significance j ultrasound med 13: 607-611
  3. chang mc, russell sa, callen pw, filly ra, goldstein rb sonographic detection of inferior vermian agenesis in dandy-walker malformations: prognostic implications microphthalamia, and cleft palate radiology 193: 765-770
  4. bromley b, nadel as, pauker s, estroff ja, benacerraf br closure of the cerebellar vermis: evaluation with second trimester us radiology 193: 761-763
  5. obwegeser r, deutinger j, bernaschek g recurrent dandy-walker malformation arch gynecol obstet 255: 161-163
  6. mcduffie rs complete trisomy 9: case report with ultrasound findings am j perinatol 11: 80-84
  7. wilson me, lindsay dj, levi cs, ackerman te, gordon wl us case of the day radiographics 14: 678-681
  8. achiron r, achiron a, yagel s first trimester transvaginal sonographic diagnosis of dandy-walker malformation j clin ultrasound 21: 62-64
  9. vohra n, ghidini a, alvarez m, lockwood c walker-warburg syndrome: prenatal ultrasound findings prenat diagn 13: 575-579
  10. moerman p, pauwels p, vandenberghe k, lauweryns jm, fryns jp goldston syndrome reconsidered genet couns 4: 97-102
  11. bureau y-a, fraser w, fouquet b prenatal diagnosis of trisomy 9 mosaic presenting as a case of dandy-walker malformation prenat diagn 13: 79-85
  12. cowles t, furman p, wilkins i prenatal diagnosis of dandy-walker malformation in a family displaying x-linked inheritance prenat diagn 13: 87-91
  13. ivarsson s-a, bjerre i, brun a, ljungberg o, maly e, taylor i joubert syndrome associated with leber amaurosis and multicystic kidneys am j med genet 45: 542-547
  14. chiou y-m, tsai c-h axial sonographic features of dandy-walker variant with occipital cephalocele j clin ultrasound 20: 139-141
  15. estroff ja, scott mr, benacerraf br dandy-walker variant: prenatal sonographic features and clinical outcome radiology 185: 755-758
  16. maynor ch, hertzberg bs, ellington ks antenatal sonographic features of walker-warburg syndrome: value of endovaginal sonography j ultrasound med 11: 301-303
  17. cornford e, twining p the dandy-walker syndrome: the value of antenatal diagnosis clin radiol 45: 172-174
  18. nyberg da, mahony bs, hegge fn, hickok d, luthy da, kapur r enlarged cisterna magna and the dandy-walker malformation: factors associated with chromosome abnormalities obstet gynecol 77: 436-442
  19. hunter agw, jimenez c, tawagi fgr familial renal-hepatic-pancreatic dysplasia and dandy-walker cyst: a distinct syndrome? am j med genet 41: 201-207
  20. russ pd, pretorius dh, johnson mj dandy-walker syndrome: a review of fifteen cases evaluated by prenatal sonography. am j obstet gynecol 161: 401-406
  21. suzuki y, mimaki t, tagawa t, seino y, ohmichi m, sugita n, morimoto k, yoshimine t dandy-walker cyst associated with occipital meningocele pediatr neurol 5: 191-193
  22. nyberg da, cyr dr, mack lr, fitzsimmons j, hickok d, mahony bs the dandy-walker malformation prenatal sonographic diagnosis and its clinical significance j ultrasound med 7: 65-71
  23. funk kc, siegel mj sonography of congenital midline brain malformations radiographics 8: 11-25
  24. pilu g, romero r, de palma l, rizzo n, jeanty p, copel ja, bovicelli l, hobbins jc antenatal dignosis and obstetric mangement of dandy walker syndrome j reprod med 31: 1017-1022
  25. comstock ch, boal db enlarged fetal cisterna magna: appearance and significance obstet gynecol 66: 25s-28s
  26. campbell s, tsannatos c, pearce jm the prenatal diagnosis of joubert’s syndrome of familial agenesis of the cerebellar vermis prenat diagn 4: 391-395
  27. fileni a, colosimo c, mirk p, de gaetano am, di rocco c dandy-walker syndrome: diagnosis in utero by means of ultrasound and ct correlations neuroradiol 24: 233-235
  28. taylor ga, sanders rc dandy-walker syndrome: recognition by sonography ajnr 4: 1203-1206
